Industrial smoke filter structure:

Box body: including bag room, clean air room, porous structure board, dust bag, dust bag frame, maintenance door. Air inlet system software: includes centrifugal fan and centrifugal fan suitable motor.

There are two types of small and medium-sized bag filter: one is with ash type, and the other is without ash bucket.

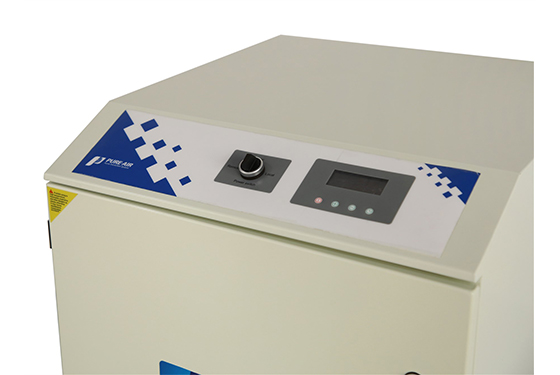

Industrial smoke purifier for co2 laser is composed of ash hopper, upper box, middle box, and lower box. The upper, middle and lower boxes are chamber structures. When working, the dust and air enter the ash hopper from the air inlet pipe, and the coarse dust immediately falls into the bottom of the ash hopper. The fine dust flows upwards to the middle and lower boxes with the air rotation break point. The dust accumulates on the outer surface of the filter bag.

After filtering The air enters the upper box to the clear air collection pipe-exhaust system channel, and is discharged into the air through the exhaust fan. This small steam boiler dust collector has the characteristics of heat resistance and corrosion resistance. The small steam boiler dust collector is a high-efficiency dust collector with a dust removal effect of more than 95%. The friction resistance of the dust collector is less than 900Pa. The current fan can ensure the normal operation of the heating furnace. The load adaptability of the small steam boiler dust collector is good. When the load is 70%, the ash removal effect is above 94%.

The smoke and dust caused when the heating furnace is ignited has been filtered by the soldering dust extractor. The black smoke from the exhaust pipe when the heating furnace is ignited is dust. The dust falls into the ash hopper for centralized transportation, and the filtered smoke becomes clean gas. The dust is removed by the bag. When the dust collector is used to collect and purify the smoke and dust of the heating furnace, the small industrial dust collector will settle the large particles in the exhaust gas from the foundation, reduce the working pressure of the cloth bag, increase the use time of the dust collector bag, and make the bag filter can operate smoothly for a long time. , Protect the ecological environment, and build profit for the company.
