Focus on mobile explosion-proof dust collectors, with high quality, reliable quality, energy saving, environmental protection, efficient purification, and help enterprises to be more efficient!

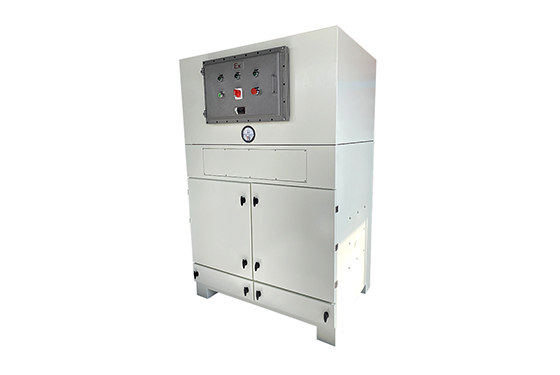

In many industrial production processes, dust removal is an important issue, which plays an important role in our production safety and production efficiency. Among them, the mobile explosion-proof dust collector is a widely used type of vacuum cleaner. Today, we will introduce the stand-alone Mobile vacuum cleaner.

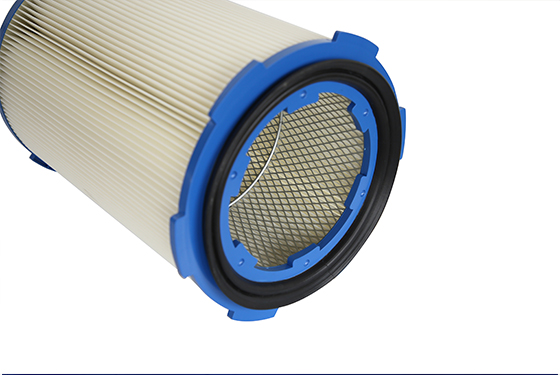

When the mobile Explosion-proof dust collector enters the vacuum cleaner from the suction port, it first hits the inclined plate and baffle in the middle of the suction port. When the airflow turns to flow into the ash hopper, the airflow speed slows down due to the effect of inertia. , The coarse particles of dust in the gas flow directly into the ash hopper. Play the role of pre-collection of dust. The airflow entering the ash hopper is then folded, and the dust passing through the internal filter system is trapped on the outer surface of the filter bag. The purified gas enters the filter bag and is collected into the blowing outlet for discharge. The dust-containing gas passes through In the process of purifying through the filter bag, as time increases, the dust accumulated on the filter bag increases, the resistance of the filter bag increases, and the processing air volume decreases. In order to work normally, the resistance must be controlled within a certain range (140-170 mm of water column). ) Remove the dust falling into the ash hopper, and discharge the body through the ash discharge system.

Mobile explosion-proof dust collector should pay special attention to prevent burning, explosion and fire accidents. When dealing with combustion gases and high-temperature gases, incomplete combustion dust, sparks, combustion and explosive gases, etc. often enter the system. Some dusts have spontaneous combustion and electrification. At the same time, many filter materials are easy to burn, and friction is easy to generate static electricity accumulation. Burning and explosion accidents under high operating conditions!

If you want buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
