Introduction：

Application:

It is suitable for the purification of smoke and odor in industries such as laser cutting, engraving, assembly line coding, multi-station soldering，PCB manufacturing and other industries.

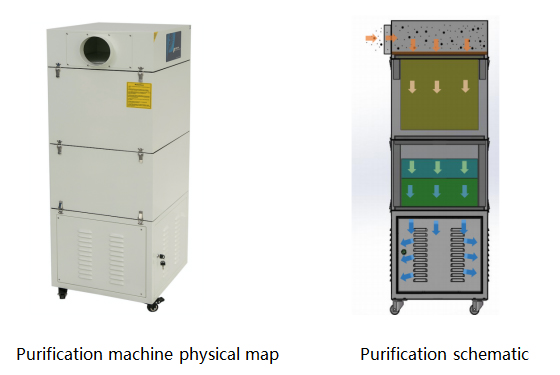

Working principle：

The special high-efficiency brushless fan generates large air volume and high negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by multi-stage filter elements such as primary, medium, high efficiency and gas filters, and then discharges it.

Features and benefits：

(1). Small body, low running noise, casters installed, easy to move；

(2). High efficiency medium pressure fan, stable operation and long service life；

(3).Four-stage filter to ensure efficient purification of smoke, odor and harmful gases

(4).Filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);

(5). Good odor and harmful gas purification effect, no need to discharge to external pipe；

(6). The filter element can be replaced independently, which reduces the use cost of the filter element, and it is more convenient to maintain and replace the filter element.

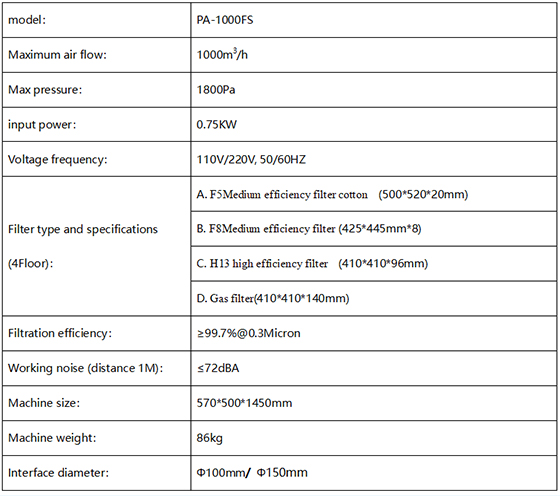

Purifier parameters:

If you want to buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
