Introduction：

Application:

Large-volume dust collector is suitable for collecting and filtering floating dust with small dust amount, such as lithium battery slitter.

Working principle:

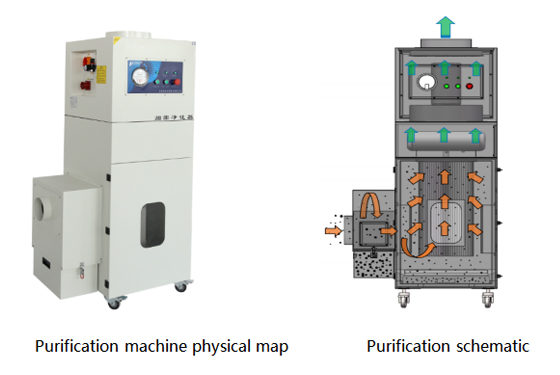

The high-performance fan in the purifier generates negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by imported high-efficiency filter cartridge for indoor discharge. The filter cartridge can be reused after being blown with compressed air.

Features and benefits:

(1). Special structure design, small body size, low running noise and movable;

(2). Adopting special aluminum alloy impeller and Siemens three-phase motor, perfect combination of negative pressure and flow; stable operation, low failure rate and continuous operation;

(3). Set the main switch of the power supply, the electronic control components adopt thermal overload protection, phase loss and phase sequence protection, high safety, and can achieve remote control and linkage control functions

(4). Standard configuration of Toray polyester fiber-coated filter cartridges from Japan. The smoke and dust filter efficiency is up to 99.7%@0.3 microns (note: our self-test), optional higher-precision filter cartridges, antistatic filter cartridges, Or flame-retardant filter cartridges;

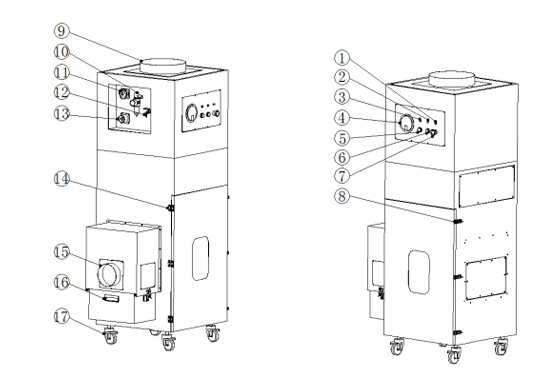

（1.Power Indicator  2.Running lights  3.Dust removal indicator  4.Differential pressure gauge off  5.Automatic dust cleaning switch  6.Run / stop switch  7.Emergency stop 8.Buckle  9.Air outlet  10.Air pressure regulating valve 11.Switch  12.Exhaust ball valve 13.Power outlet  14.Hinge 15.Inlet  16.Buckle  17.Caster）

(5). A fire blocking device is installed at the air inlet, and prevent sparks from directly contacting the filter cartridge and damage it

(6). A manual dust cleaning door is set up to clean the dust inside the machine to prevent dust leakage;

(7). Special air duct and noise reduction design to reduce the noise of the air outlet of the machine;

(8). Stainless steel case can be customized according to customer requirements.

If you want buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
