Introduction:
Application:
It is suitable for the collection and filtration of single-station manual arc welding, argon arc welding, two-shield welding, grinding and polishing. Automatic pulse backflushing system for cleaning the filter cartridge.
Working principle:
Introduction:
Application:
It is suitable for the purification of smoke and odor in industries such as laser cutting, engraving, assembly line coding, multi-station soldering,PCB manufacturing and other industries.
Working principle:

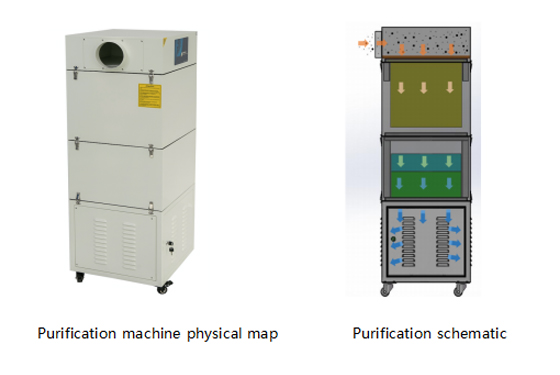

The special high-efficiency brushless fan generates large air volume and high negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by multi-stage filter elements such as primary, medium, high efficiency and gas filters, and then discharges it.
Features and benefits:
(1). Small body, low running noise, casters installed, easy to move;
(2). High efficiency medium pressure fan, stable operation and long service life;
(3).Four-stage filter to ensure efficient purification of smoke, odor and harmful gases
(4).Filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);
(5). Good odor and harmful gas purification effect, no need to discharge to external pipe;
(6). The filter element can be replaced independently, which reduces the use cost of the filter element, and it is more convenient to maintain and replace the filter element.

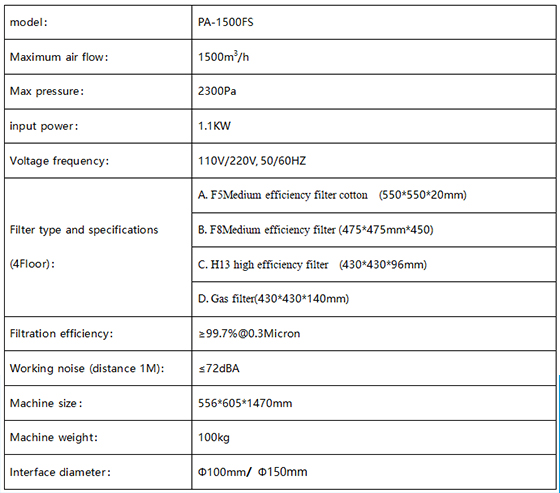

Purifier parameters:
If you want to buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
