PA-400TS-LD-HP-IQ Fume Extractor

Release date:2021-12-28 Source:Pure-Air Pageviews:-



Dental milling/grinding, reflow soldering, wave soldering, Laser marking, laser printing, laser engraving, scribing, coding; multi-station soldering, dipping, manual repair of circuit boards, printing, 3D Printing and other industries.

Working principle:

The special high-efficiency brushless fan generates large air volume and high negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by multi-stage filter elements such as primary, medium, high efficiency and gas filters, and then discharges it.

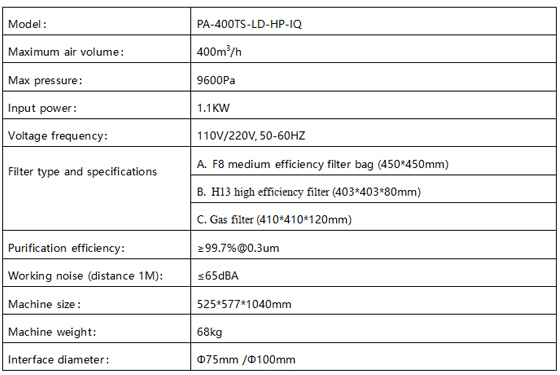

PA-400TS-LD-HP-IQ Fume Extractor

Features and benefits:

(1). Metal frame structure design, small body size, reduce machine vibration, low running noise, equipped with casters, easy to move;

(2). Brushless fan adopts alloy impeller and joint venture motor, with long service life and stable operation;

(3). The air volume can be adjusted, and the LCD screen can check the air volume and negative pressure of the machine;

(4). The control system has a filter clogging alarm function to prompt customers to replace the filter in time;

(5). Equipped with infrared or wireless remote control to facilitate remote operation of the machine;

(6). Three-stage filtering large-capacity filter to ensure effective purification of smoke, odor and harmful gas;

(7). Soot filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);

(8). High odor and harmful gas purification effect, the internal circulation can be;

(9). The filter element can be replaced separately, which reduces the use cost of the filter element, and it is more convenient to maintain and replace the filter element;

(10). Stainless steel case can be customized according to customer requirements.


PA-400TS-LD-HP-IQ Fume Extractor-

If you want buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
