PA-400TS-LT-HP-IQ Fume Extractor

Release date:2021-12-15 Source:Pure-Air Pageviews:-

Introduction:

Application:

Laser cutting / engraving of wood, plywood, density board, rubber board, two-color board, polarizer and other materials to produce sticky smoke and odor purification

Working principle:

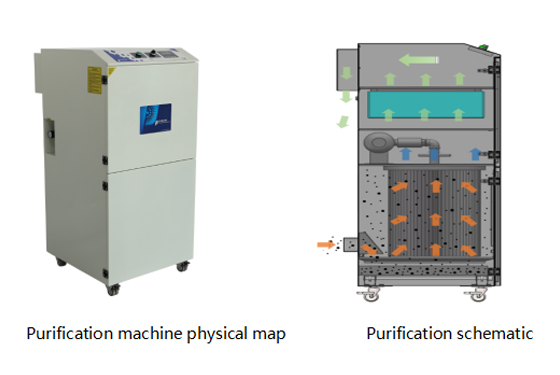

The high-performance brushless fan in the purifier generates negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by multi-stage filter elements such as primary efficiency, mediumefficiency, high efficiency, and gas filter for indoor discharge.

PA-400TS-LT-HP-IQ Fume Extractor

Features and benefits:

(1). Special structure design, small body size, low running noise and movable;

(2). Low power consumption, large air volume, high negative pressure brushless fan, stable operation and long service life;

(3). The air volume can be adjusted, and the LCD screen can check the air volume of the machine in real time;

(4). With built-in filter plug alarm function, prompt the customer to replace the filter in time;

(5). Configure pulse spray cleaning function and remote linkage control function, can start and stop synchronously with other equipment;

(6). Patented product (Utility model patent certificate number: ZL 2018 2 1662589.1), the unique prefiltration layer can protect the main filter from being blocked by sticky soot, and the service life of the main filter can be extendedby more than 50%;

(7). Soot filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);

(8). Good odor and harmful gas purification effect, no odor emitted indoors;

(9). The filter element can be replaced independently, which reduces the use cost of the filter element, and it is more convenient to maintain and replace the filter element;

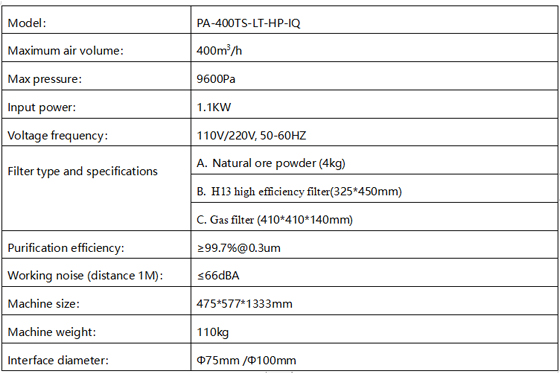

3.Parameters:

PA-400TS-LT-HP-IQ Fume Extractor-1

If you want buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
