Introduction：

Application:

It is suitable for the collection and filtration of single-station manual arc welding, argon arc welding, two-shield welding, grinding and polishing. Automatic pulse backflushing system for cleaning the filter cartridge

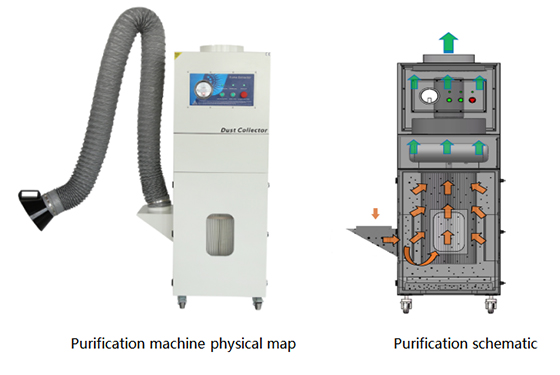

Working principle:

The high-performance fan in the purifier generates negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by imported high-efficiency filter cartridge for indoor discharge. The machine can be connected to compressed air and then used for automatic pulse spraying of the filter cartridge.

Features and benefits:

(1). Special structure design, small body size, low running noise and movable;

(2). Adopting special aluminum alloy impeller and Siemens three-phase motor, perfect combination of negative pressure and flow; stable operation, low failure rate and continuous operation;

(3). Set the main switch of the power supply, the electronic control components adopt thermal overload protection, phase loss and phase sequence protection, high safety, and can achieve remote control and linkage control functions；

(4). Standard configuration of Toray Japan's high-efficiency membrane-coated filter cartridges, with a smoke and dust filtration efficiency of up to 99.7%@0.3 microns (note: our self-test);

(5). A fire blocking device is installed at the air inlet, and the spark is placed in direct contact with the filter cartridge to damage the filter cartridge;

(6). Unique pulse backflushing device, good dust removal effect;

(7). Special air duct and noise reduction design to reduce the noise of the air outlet of the machine;

(8). The universal joint suction arm can be hovered at any position 360 degrees; The smoking hood adopts a large-caliber design, which can inhale smoke and dust with maximum efficiency; the smoking arm hose is made of polyester, fireproof and flame retardant.

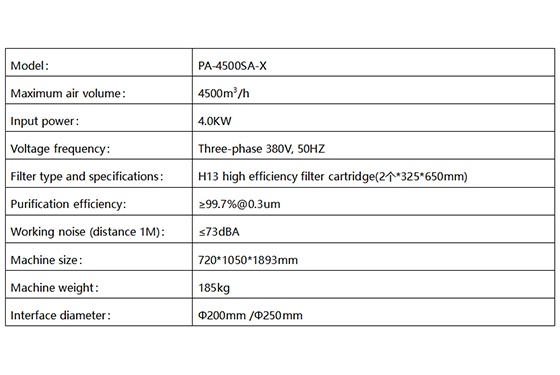

Parameters:

If you want buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
