Introduction：

Application:

It is suitable for the purification of soot during laser marking, engraving, scribing, coding, manual soldering, dipping tin, manual repair of circuit boards, etc.

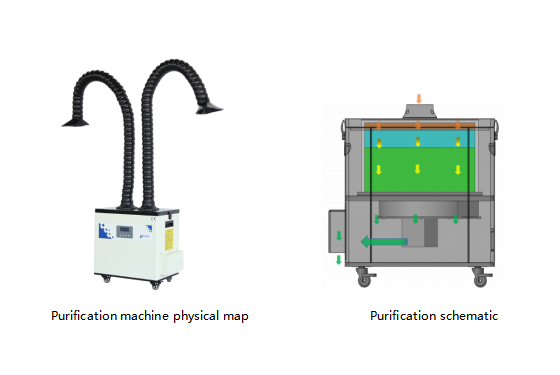

Working principle：

The brushless fan in the purifier generates air volume and negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by multi-stage filter elements such as primary efficiency, intermediate efficiency, high efficiency, and gas filter for indoor discharge.

Features and benefits:

(1). The machine is small in size, low in operating noise and easy to move;

(2). Low power consumption and high efficiency brushless fan, stable operation and long service life;

(3). The air volume can be adjusted, and the LCD screen can check the air volume of the machine in real time;

(4). The control system comes with a filter plug alarm function, prompting customers to replace the filter in time;

(5). Equipped with infrared or wireless remote control to facilitate remote operation of the machine;

(6). Four-stage filter to ensure complete purification of soot and harmful substances;

(7). The filter element can be replaced separately, which reduces the use cost of the filter element, and it is more convenient to maintain and replace the filter element;

(8). The filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);

(9). Equipped with high-quality universal adjustment to support smoking bamboo tube.

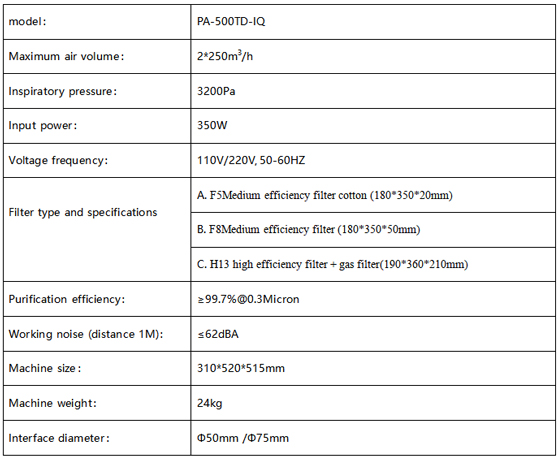

Parameters:

If you want to buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
