Introduction:

Application:

It is suitable for the purification of smoke and odor in industries such as laser cutting, engraving, assembly line coding, multi-station soldering and other industries.

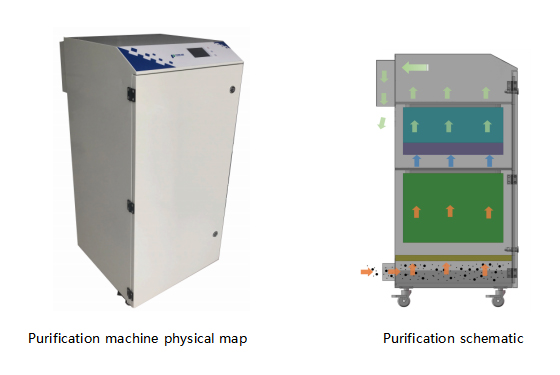

Working principle:

The special high-efficiency brushless fan generates large air volume and high negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by multi-stage filter elements such as primary, intermediate, high efficiency and gas filters, and then discharges it.

Features and benefits:

(1). Color touch screen, colorful and bright, machine parameter image is intuitive, and can be operated by touch;

(2). Automatic flow control. After the customer has set the required air volume, the system will automatically control the fan to reach the set air volume;

(3). Real-time monitoring and display of the blockage percentage of each layer of filters, visual display of the filter cartridge use status;

(4). Air inlet clogging alarm. When the air volume of the air inlet is too low or blocked, the system will alarm automatically;

(5). Over temperature alarm of main filter. When the temperature of the main filter layer exceeds the effective use temperature of the gas filter, the system will alarm and stop automatically;

(6). Safe operation monitoring. When the system detects that the main filter is not installed, the system will alarm and stop automatically;

(7). It can be equipped with PM2.5, VOC, HCL and other sensors to monitor and display the air outlet in real time;

(8). Door open alarm. When the machine is running, if the front door is opened, the system will alarm;

(9). Password lock function. Only relevant personnel who have obtained the authorized password can operate and maintain to ensure that the purifier is used and maintained correctly;

(10). Three remote communication and control methods can be configured: I / O interface, RS485 and LORA wireless communication;

(11). The system will display alarm icons, codes, and fault codes to facilitate technicians to efficiently solve after-sales problems.

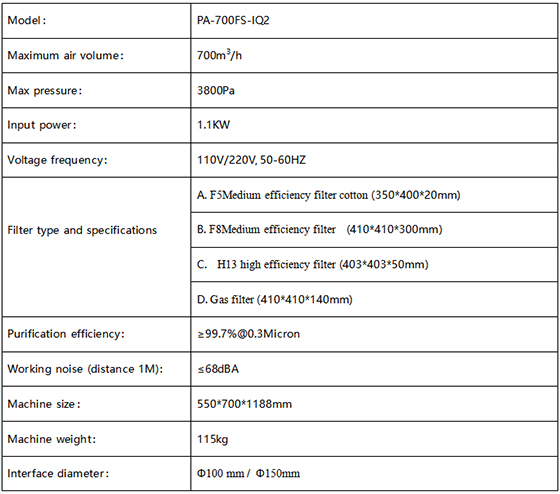

Parameters:

If you want buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
