Introduction：

Application:

Imported 0.3 micron high-precision coated filter cartridge, automatic pulse back blow ash cleaning system, suitable for carbon powder, graphite powder, cement powder, flour and other large amount of floating dust collection and filtering.

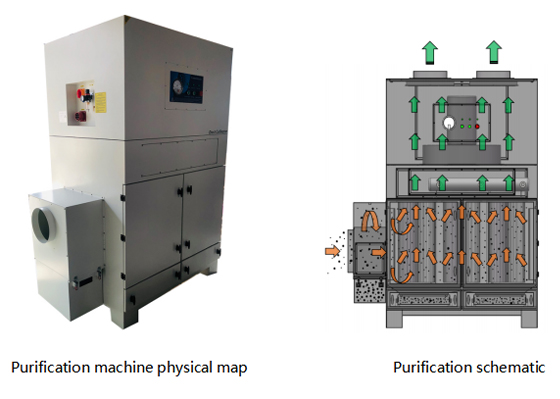

Working principle:

The high-performance fan in the purifier generates negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by imported high-efficiency filter cartridge for indoor discharge. The machine can be connected to compressed air and then used for automatic pulse spraying of the filter cartridge.

Features and benefits:

(1). Special structure design, small body size, low running noise and movable;

(2). Adopting special aluminum alloy impeller and Siemens three-phase motor, perfect combination of negative pressure and flow; stable operation, low failure rate and continuous operation;

(3). Set the main switch of the power supply, the electronic control components adopt thermal overload protection, phase loss and phase sequence protection, high safety, and can achieve remote control and linkage control functions；

(4). Standard configuration of Toray polyester fiber-coated filter cartridges from Japan. The smoke and dust filter efficiency is up to 99.7%@0.3 microns (note: our self-test), optional higher-precision filter cartridges, antistatic filter cartridges, Or flame-retardant filter cartridges;

(5). A fire blocking device is installed at the air inlet, and the spark is placed in direct contact with the filter cartridge to damage the filter cartridge;

(6). Unique pulse backflushing device, good dust removal effect;

(7). The special air duct and noise reduction design reduce the noise of the air outlet of the machine.

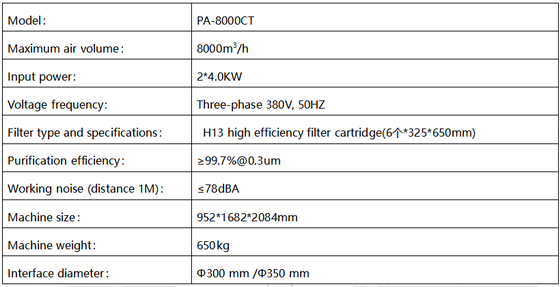

Parameters:

If you want to buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
