Pure-Air has maintained long-term cooperation with laser welding companies to provide them with high-quality laser welding fume filters and understand the process parameters of laser welding

1. Power density Power density is one of the most critical parameters in laser processing. With a higher power density, the surface layer can be heated to the boiling point within a microsecond time range, resulting in a large amount of vaporization. Therefore, high power density is beneficial for material removal processing, such as punching, cutting, and engraving. For lower power densities, it takes several milliseconds for the surface temperature to reach the boiling point. Before the surface layer vaporizes, the bottom layer reaches the melting point, which is easy to form a good fusion weld. Therefore, in conductive laser welding, the power density is in the range of 104~106W/cm2.

2. Laser pulse waveform Laser pulse waveform is an important issue in laser welding, especially for sheet welding. When a high-intensity laser beam hits the surface of the material, 60~98% of the laser energy will be reflected and lost on the metal surface, and the reflectivity changes with the surface temperature. During a laser pulse, the reflectivity of the metal changes greatly.

3. Laser pulse width Pulse width is one of the important parameters of pulsed laser welding. It is not only an important parameter different from material removal and material melting, but also a key parameter that determines the cost and volume of processing equipment.

4. The effect of defocusing amount on welding quality. Laser welding usually requires a certain amount of separation, because the power density in the center of the spot at the laser focus is too high and it is easy to evaporate into holes. On each plane away from the laser focus, the power density distribution is relatively uniform.

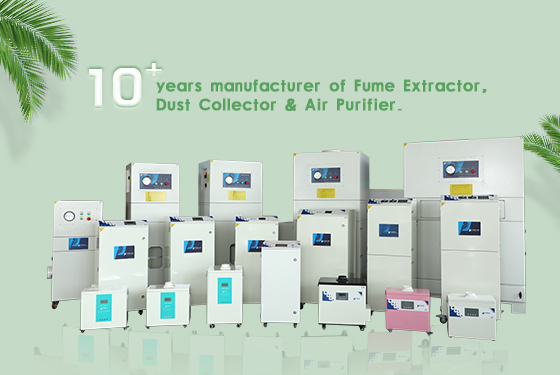

Pure-Air has been cooperating with large laser welding companies for more than 10 years, and has provided these companies with energy-saving, environmentally friendly, and highly efficient laser welding fume filters.

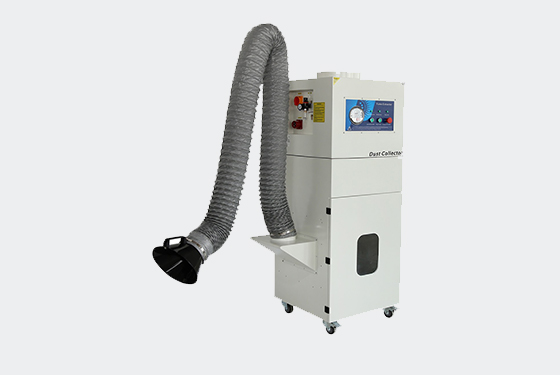

If you want to buy welding fume extractor, please contact ‘Dongguan Pure-Air Tech Co.,’.
