Note in daily operation of mobile stand-alone dust collector and welding machine dust removal equipment:

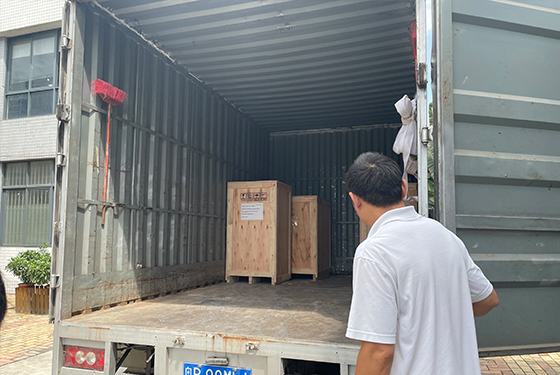

1. Pure-air laser fume extractor, welding machine dust removal equipment products, during transportation, must not be inverted, rained, bumped, hit and other dangerous actions that may damage the equipment.

2. After arrival, please check the packing list. If there is any loss, please report to us in time.

3. Mobile stand-alone dust collector, welding machine dust removal equipment can be used after simple installation, put the dust suction tube into the suction mouth, connect the other end of the stainless steel straight pipe, insert the nozzle into the suction head, and buckle it with the iron hoop provided with the machine. tight.

4. Before use, please check the tightness of the screws in each part of the dust collector, whether the filter element is installed in place, and whether the electronic and electrical components are normally energized, and then the machine can be turned on.

5. Smoke purifier for co2 laser equipped with filter element, dust removal equipment for welding machine, do not absorb the medium that is easy to deliquesce, and the particles are too fine, otherwise it will easily block the filter eye, reduce the suction force, affect the dust collection effect and may damage the filter bag .

6. When the straw is used in an environment with static electricity, the built-in steel wire near the end of the suction port can be pulled out to make it directly connected to the suction port to directly conduct the static electricity that may be generated.

7. If the suction power becomes weak during use, please remove the filter and blow back with compressed air to clean the filter bag. When installing the filter bag, be sure to tie the bottom of the bag tightly, otherwise the medium may be sucked into the motor or the filter may be damaged.

8. An overload protection device is installed in the electrical appliance. After an overload occurs, please turn off the power first, find out the cause of the overload, and then turn it on again.

9. When the particle size of the absorbed granular medium is below 0.1mm, please clean the filter bag and filter frequently.

10. The soldering dust extractor can work continuously for a long time, but in order to prolong the service life, please do not overuse it, just keep it in normal operation.
