Dust Collector

The high-performance fan generates negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by imported material with high efficiency membrane filter cartridge before discharging.
inquiry

Prev

  • Dust Collector
  • Dust Collector
  • Dust Collector
  • Dust Collector

Next

product details

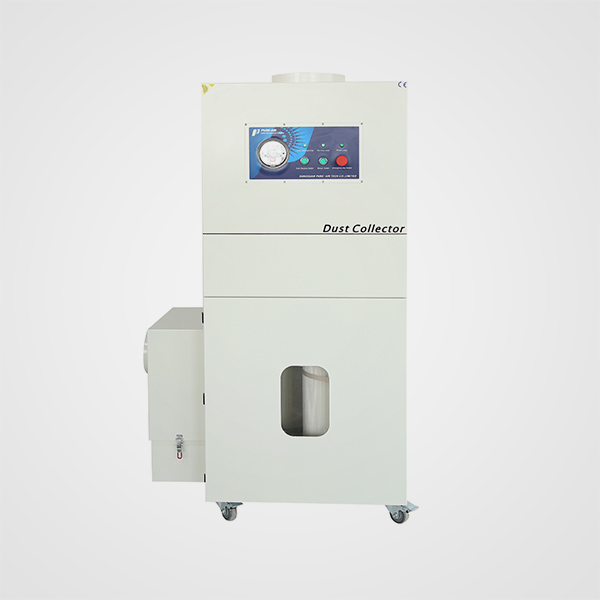

PA-1000SH

PA-1000SH

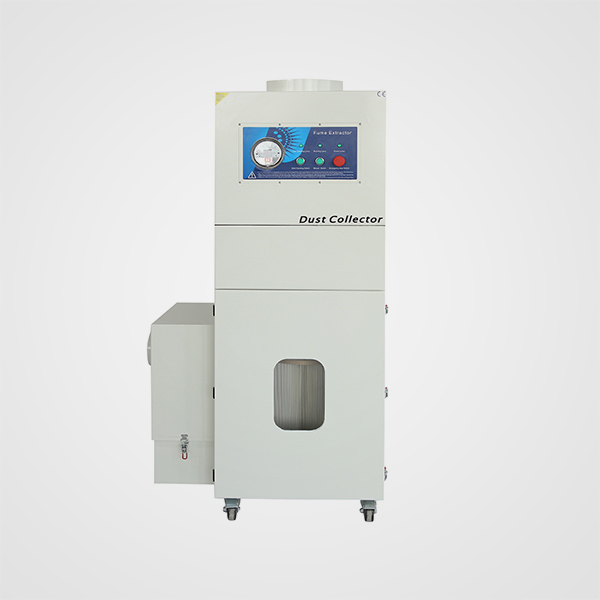

PA-1500SH & PA-2400SH

PA-1500SH & PA-2400SH

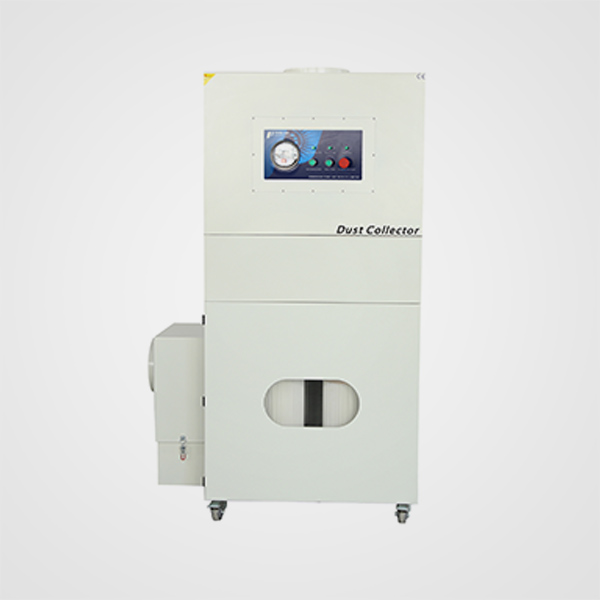

PA-3600SH & PA-4500SH

PA-3600SH & PA-4500SH

PA-5000SH

PA-5000SH

Working principle

The high-performance fan generates negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by imported material with high efficiency membrane filter cartridge before discharging.

Features and benefits

Special structure design, small body size, low running noise and movable;

Dedicated aluminum alloy impeller and brand motor, perfect combination of negative pressure and flow. Stable operation, low failure rate and continuous operation;

The electronic control element adopts thermal overload protection, phase loss and phase sequence protection, and high safety. And can achieve remote linkage control and other functions;

It is equipped with Toray polyester fiber coated filter cartridge, the dust filtration efficiency is up to 99.7%@0.3 microns (self-tested by our company);

A fire blocking device and a dust box are installed at the air inlet to prevent sparks from contacting the filter cartridge and damage the coating layer on the surface of the filter cartridge to prolong the service life of the filter cartridge;

The SA and CT series models are equipped with a specially designed automatic rotating pulse back flushing device, which has a good dust cleaning effect;

Special air duct and noise reduction design to reduce machine noise;

Stainless steel cabinet can be customized according to customer requirements.

Product parameter
Model PA-1000SH PA-1500SH
PA-2400SH
PA-3600SH
PA-4500SH
PA-5000SH
Max Air Flow 1000 m3/h 1500 m3/h /      2400 m3/h 3600 m3/h /         4500 m3/h 5000 m3/h
Input Power 1.1 KW 1.5 KW / 2.2KW 3.0 KW / 4.0KW 5.5 KW
V / F 1-Phase, 220V, 50HZ 3-Phase, 380V, 50HZ
Filter Type H13 PTFE filter cartridge  (1pc*325*450mm) H13 PTFE filter cartridge          (1pc*325*650mm) H13 PTFE filter cartridge           (2pcs*325*650mm) H13 PTFE filter cartridge           (4pcs*325*650mm)
Noise ≦68 dBA ≦70 dBA/≦72 dBA ≦73 dBA/≦75 dBA ≦78 dBA
Machine Size 530*830*1421mm 620*900*1818mm 720*1050*1893mm 872*1242*2013mm
Net Weight 120 kg 145 kg / 150kg 185 kg / 195kg 230 kg
Inlet Diameter 150 mm 150 mm 200 mm / 250 mm 250 mm / 300 mm

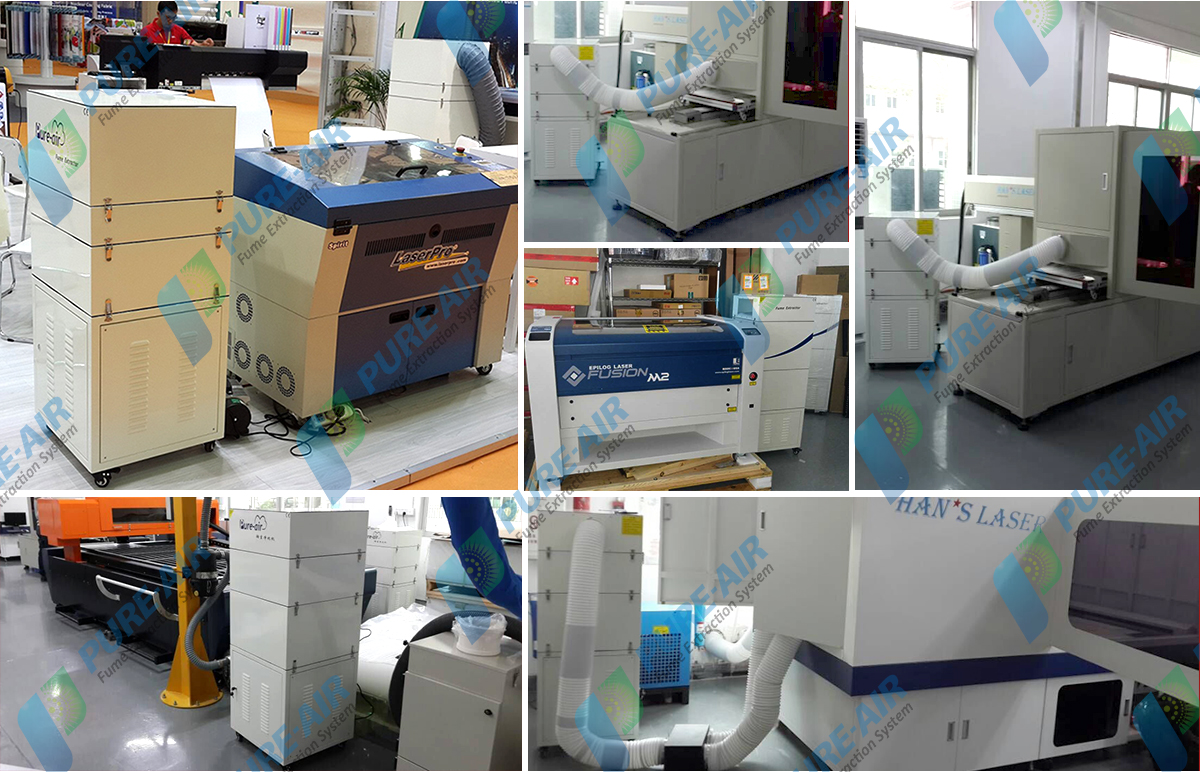

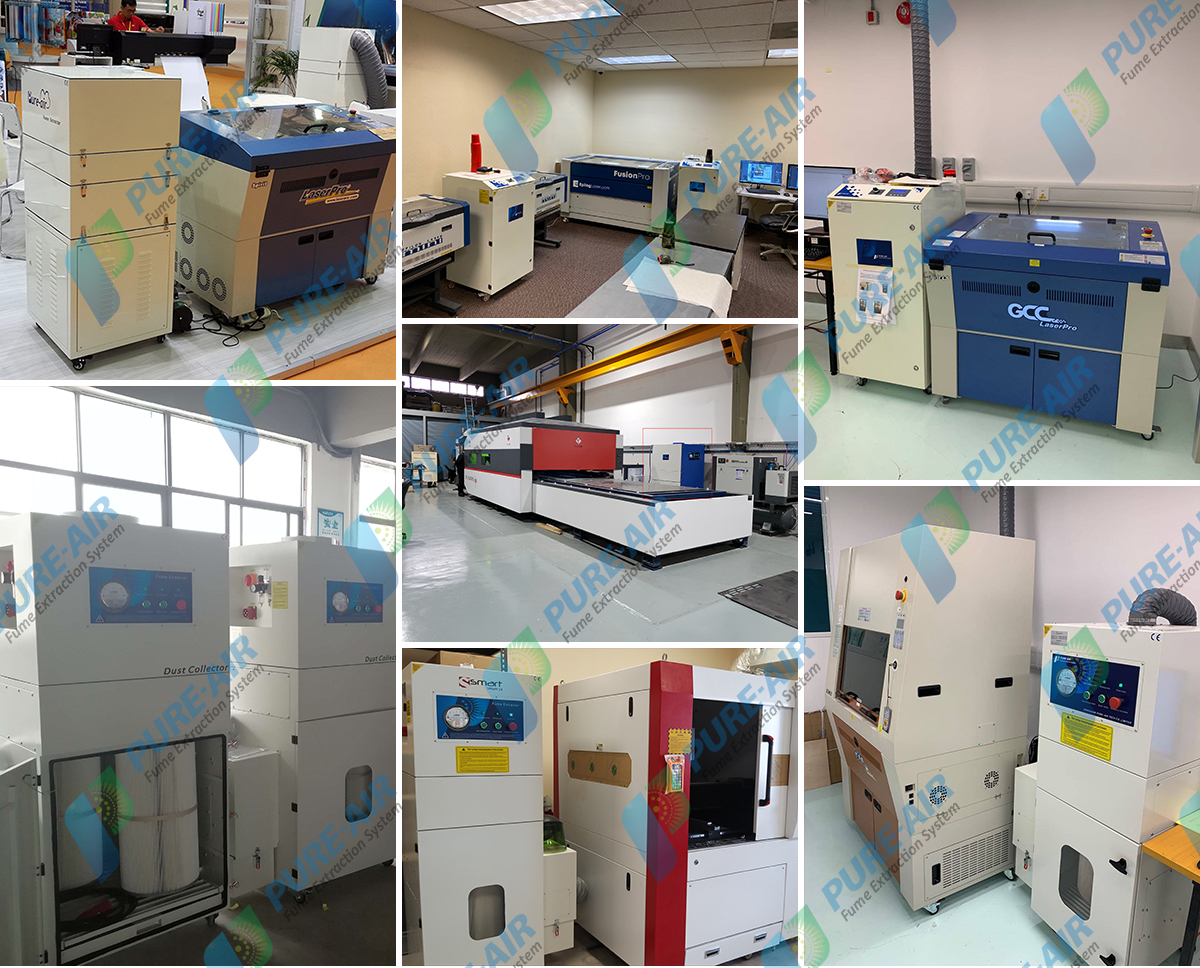

Applications

Cutting, grinding, polishing, welding of carbon steel, stainless steel, aluminum, copper plate and other metal materials.
