Ink digital inkjet printing fume extractor

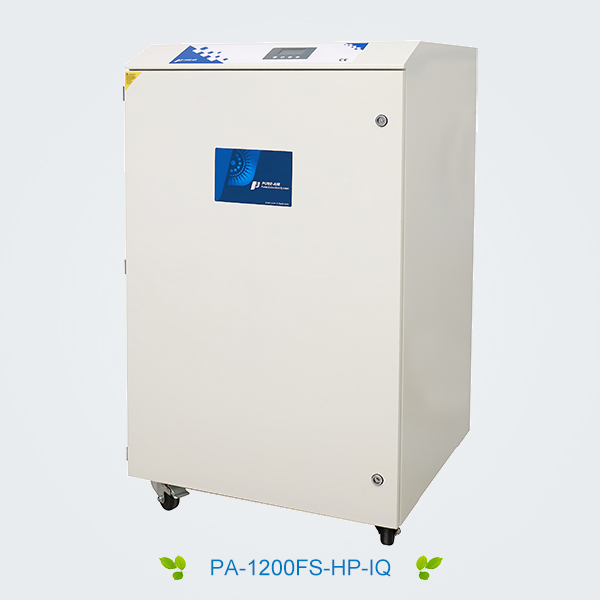

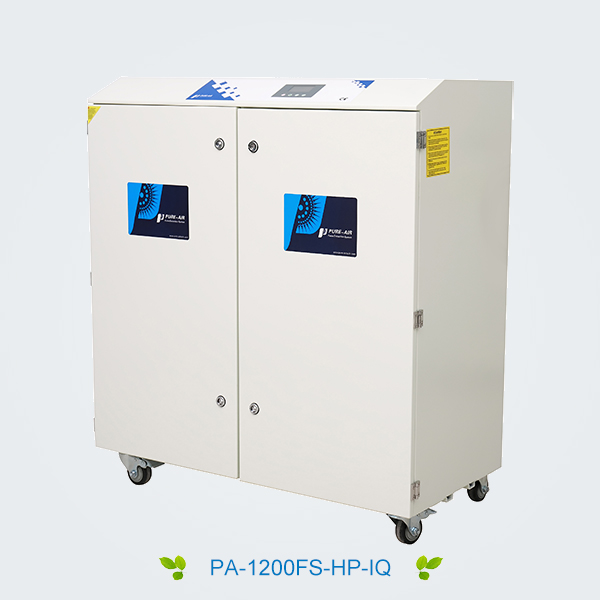

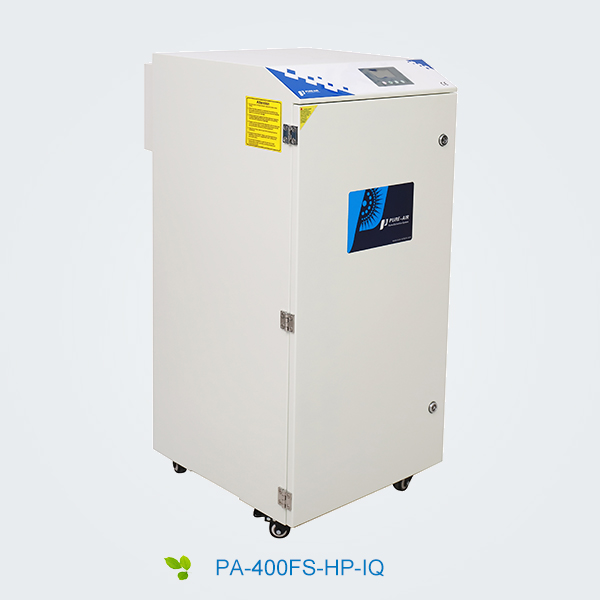

Pure-Air PA-400FS-HP-IQ / PA-800FS-HP-IQ / PA-1200FS-HP-IQ fume extraction is suitable for the purification of smoke, peculiar smell and harmful gas in the production process of large-format digital printing, UV printing and coding, solvent ink printing & 3D printing.
inquiry

Prev

  • Ink digital inkjet printing fume extractor
  • Ink digital inkjet printing fume extractor
  • Ink digital inkjet printing fume extractor
  • Ink digital inkjet printing fume extractor
  • Ink digital inkjet printing fume extractor

Next

Working Principle

The brushless fan in the purifier generates air volume and negative pressure, sucks the smoke and exhaust gas into the filter, and discharges it indoors after being purified by multi-stage filter elements such as primary, medium, high efficiency and gas filters.

air filter for inkjet printing

Features and advantages

Pure-Air fume extractor

(1). The body is small in size, low in running noise, and equipped with casters for easy movement;

(2). TS-IQ, TD-IQ, FS-IQ series are equipped with low power consumption, maintenance-free, high-volume brushless fans, stable operation and long service life. The TS-LD-HP-IQ series is equipped with a high negative pressure brushless fan with large suction power;

(3). The air volume can be adjusted, and the LCD display can check the air volume and gear of the machine;

(4). The control system has a filter element blockage alarm function, prompting to replace the filter element in time;

(5). Configure wireless remote control to facilitate remote operation of the machine. The remote linkage start-stop interface can also be configured;

(6). Multi-stage large-capacity filter to ensure efficient purification of smoke, odor and harmful gases. It can be equipped with a special filter element to purify the smoke and harmful gases generated by PVC materials;

(7). The filtration efficiency of smoke and dust is as high as 99.7%@0.3 microns (our company's self-test), which can be discharged indoors;

(8). The filter element can be replaced separately, which reduces the use cost of the filter element and makes it easier to maintain and replace the filter element;

(9). Stainless steel chassis can be customized according to customer requirements.

(10)With castors, easily to move.


Product Detail

♦ Brushless fan, low noise and stable operation

The power system adopts a single-phase brushless motor, 110V/220V power supply is convenient to access, and can realize stepless speed regulation, and realize the choice of air volume according to the working conditions;

The biggest advantage of brushless fans is low noise operation, stable operation, maintenance-free, and long service life. Through our special design, the wind pressure and air volume parameters are kept above a high level, so as to ensure that smoke, odor and harmful gases can be quickly extracted from the source of dust;

Multi-blade alloy wind wheel, professional dynamic balance correction, stable and reliable operation, to avoid long-term use of deformation.

motor

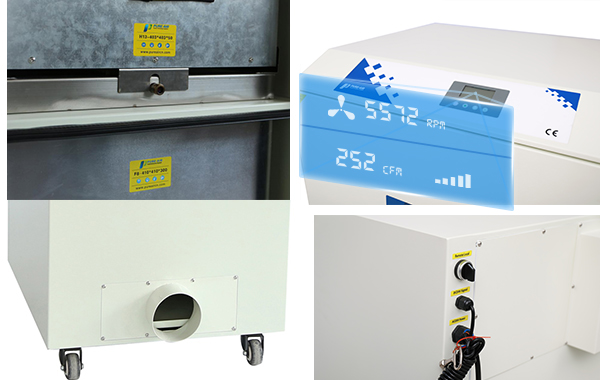

♦ Professional control circuit, safe and reliable

♦ LCD display for easy operation

The electrical system adopts the safety modular control panel specially designed by our company, and the key components adopt imported brands and materials to fully guarantee the safety and reliability of equipment operation. And has industry-specific 110V and 220V input voltage compatible switching function;

LCD liquid crystal display can display real-time data such as fan speed, air volume, gear position, etc. The air volume unit can be switched to facilitate understanding of the working status of the equipment and operations;

When the filter is detected to be clogged, the LCD screen of the control panel will flash the filter element clogging alarm symbol and the buzzer alarm function. Remind the user to clean the dust or replace the filter.

air filter for printing

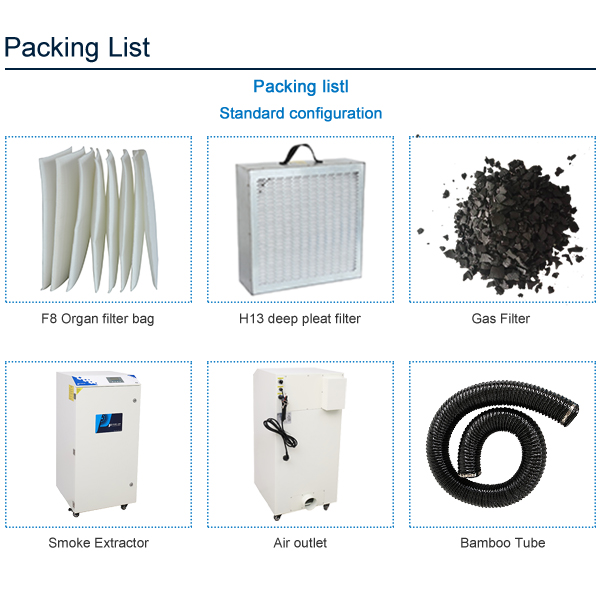

Multi-stage filtration, special activated carbon filter for better air purification


Filter system adopts plate-frame F8 medium-effect filter. It is characterized by large filtration area and large dust capacity, which greatly reduces the cost of consumables. Suitable for the use of large smoke industry scenarios.

At the same time, HEPA high-efficiency filter and activated carbon filter are configured as two-stage and three-stage filtration, which are used in the need of deodorization.

Special activated carbon filter is used. Iodine adsorption value, carbon tetrachloride (CTC) adsorption value and methylene blue adsorption value of activated carbon are all in excellent level. Applicable to laser engraving leather, acrylic, kraft paper and other non-metallic materials produced benzene, toluene, aromatic hydrocarbons, hydrogen sulfide carbon disulfide, methyl mercaptan, methyl sulfide, dimethyl disulfide, trimethylamine, styrene and other VOC organic waste gas, the effect is remarkable.


air filter for printer


Quick-disassembly design, quick and convenient to replace filter

Filter replacement mode adopts quick disassembly design. The operator only needs to rotate 90 degrees counterclockwise with a matching outer hexagonal wrench, which can take off the filter, clean up and replace it, which is convenient and quick, and ensures good air tightness.

Left and right air inlet, variable air outlet design

The air inlet adopts the left and right air inlet design, the customer can freely choose the left or right air inlet according to the different position of the equipment, reduce the length of the pipe and unnecessary winding;

The outlet can choose the standard outlet with long strip silencing device, discharge directly indoors, or add a circular outlet directly through the pipeline or connect to the central exhaust system (special description when the order is confirmed).

laser cutting non-metal fume extractor

Appearance

pureair fume extractor


NO.

Name

NO.

Name

1

Control and display panel

6

Switch

2

Door lock

7

Remote control signal line

3

Hinge

8

power cable

4

Casters

9

Inlet

5

Air outlet

10
