Laser Engraver Fume Extractor

PA-700FS / PA-1000FS/ PA-1500FS Laser Engraver Fume Extractor is suitable for fume filtration, dust collection and adsorb strong smell for CO2 laser machine cutting plastic/PET/Acrylic/paper/cardboard, also apply for fume filtration for assembly line coding, multi-station soldering, circuit board processing and other industries for the purification of dust and odor.
inquiry

Prev

  • Laser Engraver Fume Extractor
  • Laser Engraver Fume Extractor
  • Laser Engraver Fume Extractor
  • Laser Engraver Fume Extractor
  • Laser Engraver Fume Extractor
  • Laser Engraver Fume Extractor
  • Laser Engraver Fume Extractor
  • Laser Engraver Fume Extractor

Next

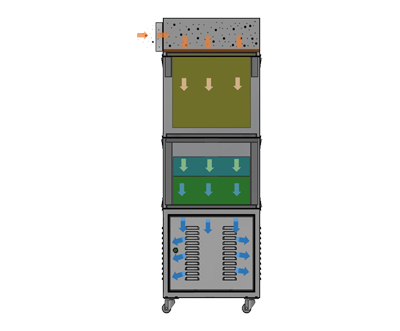

Working Principle

The Medium pressure fan in the fume extractor machine generates air volume and negative pressure, sucks the smoke and exhaust gas into the filter, and discharges it indoors after being purified by multi-stage filter elements such as primary, medium, high efficiency and gas filters.

PA-700FS  Air flow: 700m3/h,   Blower: 550W
PA-1000FS Air flow: 1000m3/h, Blower: 750W;

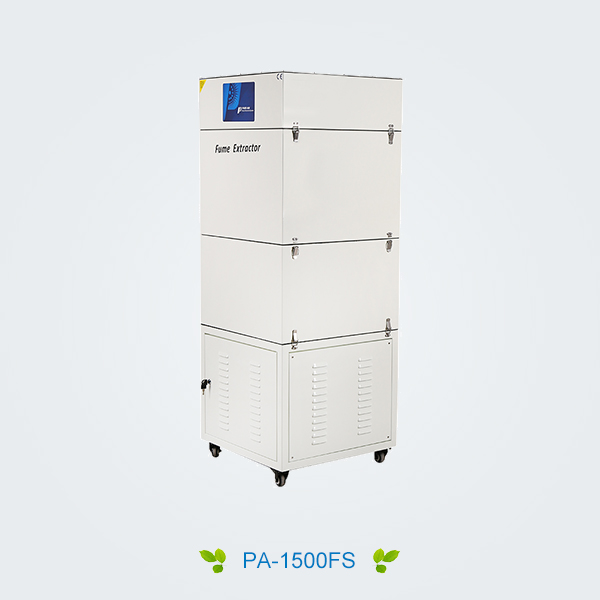

PA-1500FS Air flow: 1500m3/h, Blower: 1100W

laser cutter fume extractor

Features and advantages

Pure-Air fume extractor advantage

(1). Small body, low running noise, casters installed, easy to move;

(2). High efficiency medium pressure fan, stable operation and long service life;

(3).Four-stage filter to ensure efficient purification of smoke, odor and harmful gases

(4).Filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);

(5). Good odor and harmful gas purification effect, no need to discharge to external pipe;

(6). The filter element can be replaced independently, which reduces the use cost of the filter element, and it is more convenient to maintain and replace the filter element.

(7) Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.

(8) Specific sound absorbing materials reduce operating noise to improve operation efficiency.

(9) F5 class pre-filter comprised by cotton, can be adsorbed middling particles in the air to avoid main filter is blocked. Main filter consists of efficient HEPA element, in independent tests, these filters remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. Gas filter layer formed by the chemical materials can effectively remove harmful gases and pungent odor in the air.

(10)After multi-stage dust filtration, can be directly emitted in the room without expensive & complex exhaust project. The indoor temperature can be stability, and save energy. There is no indoor negative pressure to maintaining the air cleanliness.



Product Detail

♦ The medium pressure fan low noise and stable operation

The power system adopts a single-phase motor, 110V/220V power supply is convenient to access, and can realize stepless speed regulation, and realize the choice of air volume according to the working conditions;

The biggest advantage of brushless fans is low noise operation, stable operation, maintenance-free, and long service life. Through our special design, the wind pressure and air volume parameters are kept above a high level, so as to ensure that smoke, odor and harmful gases can be quickly extracted from the source of dust;

Multi-blade alloy wind wheel, professional dynamic balance correction, stable and reliable operation, to avoid long-term use of deformation.

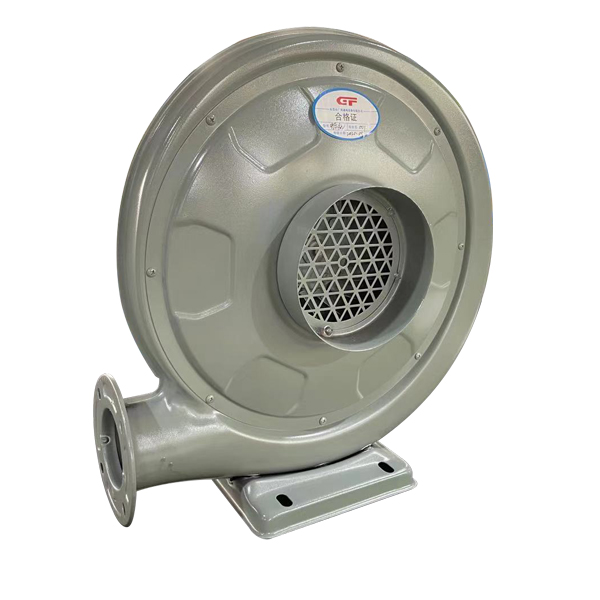

Blower for PA-700FS PA-1000FS PA-1500FS

♦ Professional control circuit, safe and reliable

♦ LCD display for easy operation

The electrical system adopts the safety modular control panel specially designed by our company, and the key components adopt imported brands and materials to fully guarantee the safety and reliability of equipment operation. And has industry-specific 110V and 220V input voltage compatible switching function;

LCD liquid crystal display can display real-time data such as fan speed, air volume, gear position, etc. The air volume unit can be switched to facilitate understanding of the working status of the equipment and operations;

When the filter is detected to be clogged, the LCD screen of the control panel will flash the filter element clogging alarm symbol and the buzzer alarm function. Remind the user to clean the dust or replace the filter.



Multi-stage filtration, special activated carbon filter for better air purification


Filter system adopts plate-frame F8 medium-effect filter. It is characterized by large filtration area and large dust capacity, which greatly reduces the cost of consumables. Suitable for the use of large smoke industry scenarios.

At the same time, HEPA high-efficiency filter and activated carbon filter are configured as two-stage and three-stage filtration, which are used in the need of deodorization.

Special activated carbon filter is used. Iodine adsorption value, carbon tetrachloride (CTC) adsorption value and methylene blue adsorption value of activated carbon are all in excellent level. Applicable to laser engraving leather, acrylic, kraft paper and other non-metallic materials produced benzene, toluene, aromatic hydrocarbons, hydrogen sulfide carbon disulfide, methyl mercaptan, methyl sulfide, dimethyl disulfide, trimethylamine, styrene and other VOC organic waste gas, the effect is remarkable.

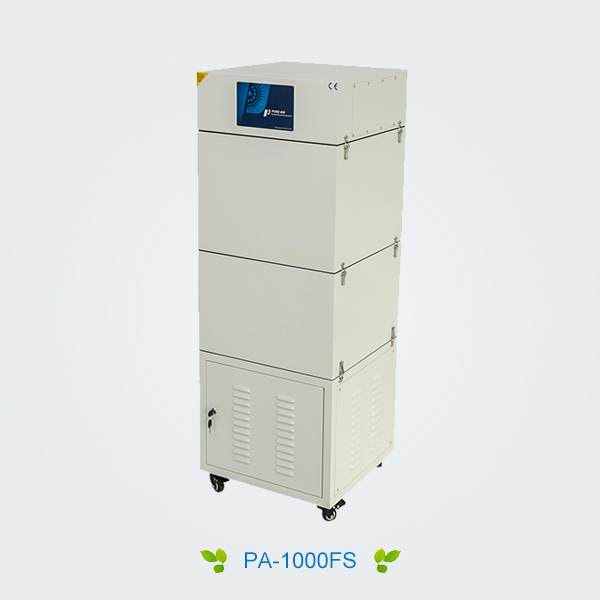

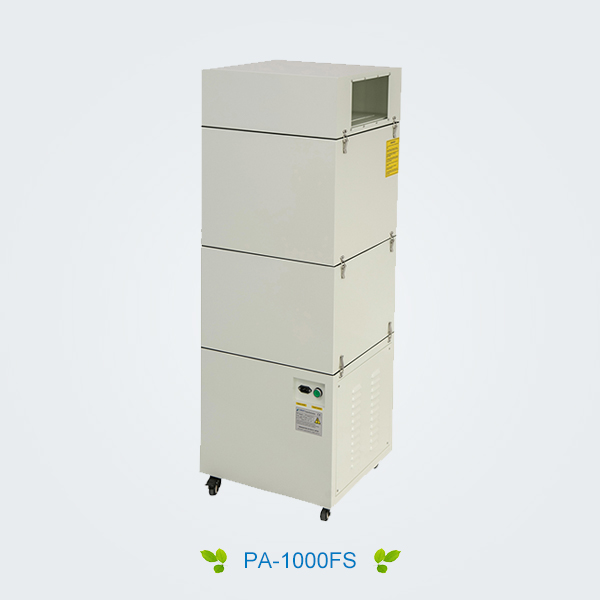

PA-1000FS Fume Extractor

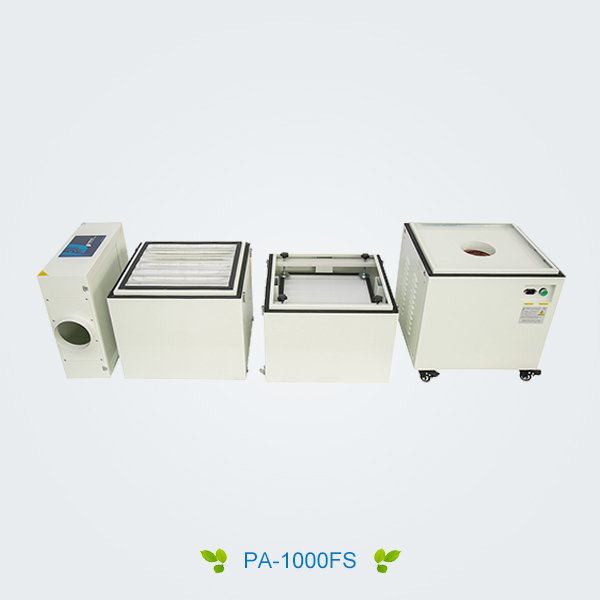

Quick-disassembly design, quick and convenient to replace filter

Filter replacement mode adopts quick disassembly design. The operator only needs to rotate 90 degrees counterclockwise with a matching outer hexagonal wrench, which can take off the filter, clean up and replace it, which is convenient and quick, and ensures good air tightness.

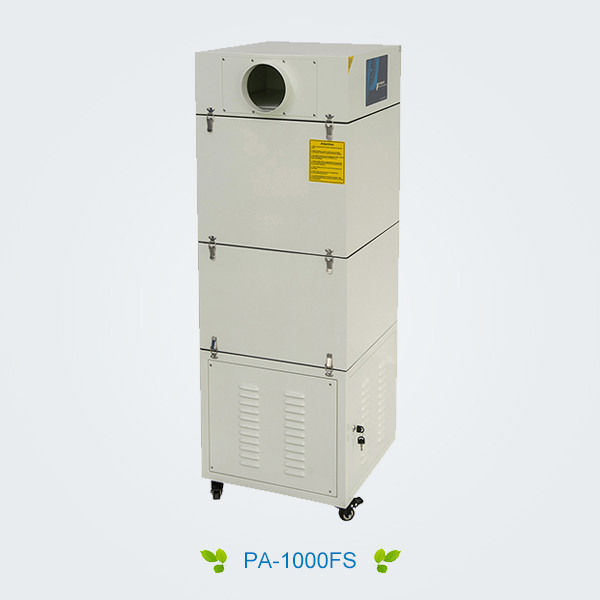

Left and right air inlet, variable air outlet design

The air inlet adopts the left and right air inlet design, the customer can freely choose the left or right air inlet according to the different position of the equipment, reduce the length of the pipe and unnecessary winding;

The outlet can choose the standard outlet with long strip silencing device, discharge directly indoors, or add a circular outlet directly through the pipeline or connect to the central exhaust system (special description when the order is confirmed).

laser cutter fume extractor

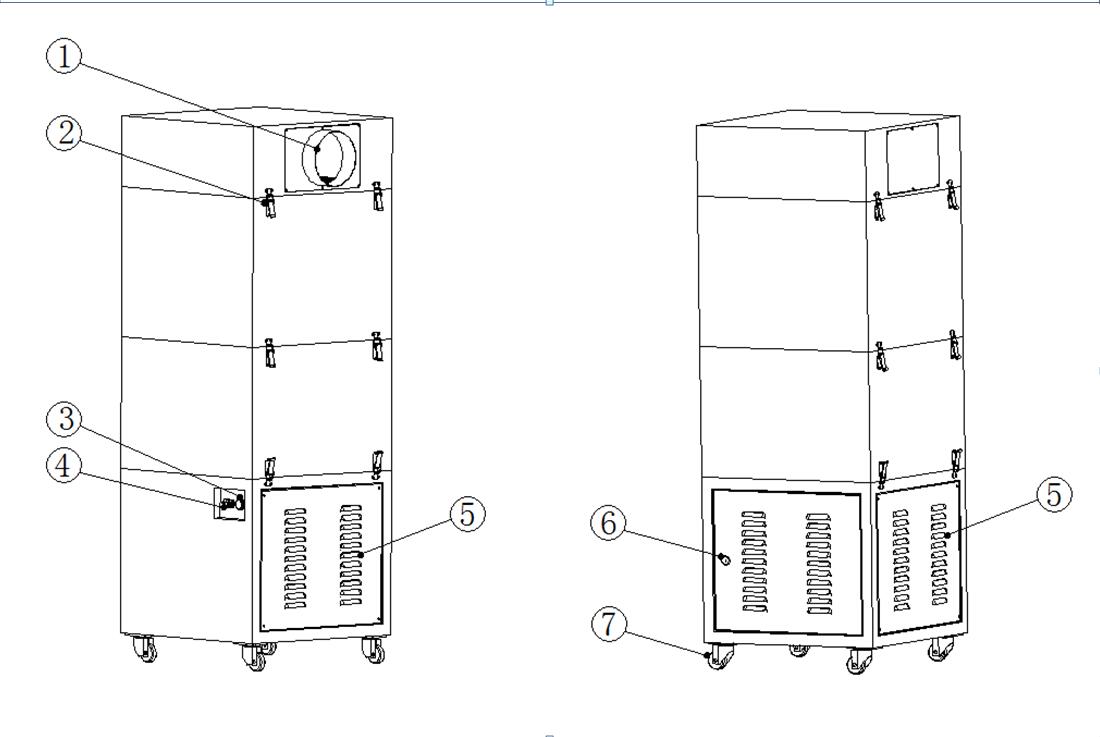

Appearance

PA-700FS PA-1000FS PA-1500FS Fume Extractor

NO. Name NO. Name
1 Air Inlet 6 Door Lock
2 Hasp 7 Castors
3 Run/stop switch

4 Power outlet

5 Air outlet
