Wood dust collector and Single-machine pulse cartridge dust collector are new products developed by using pulse filter cartridge as filter element to achieve air dust removal and industrial dust removal based on the application of pulse bag filter.

In the field of industrial dust removal, due to the advantages of high efficiency, energy saving, compact size, and high cost performance of pulse filter cartridge dust collectors, more and more pulse dust collector manufacturers and end users have begun to choose pulse filter cartridge dust collectors. When designing a pulse filter cartridge dust collector, the following factors should be considered when selecting a filter cartridge:

●Dust nature

●Installation form

●Filter material selection

Dust nature

When designing a Filter cartridge dust removal equipment, we first need to determine whether it is dust removal, material recovery or air purification. Cangzhou Zhenda supports the following judgments: Under the conditions of dust removal and material recovery, the new shallow pleat type (24mm) is preferred. Instead of bag-type pulse pleated long filter cartridges; in the purification industry, more traditional filter cartridges with large diameter and large filter area and deep pleated (48mm) are used.

Installation form

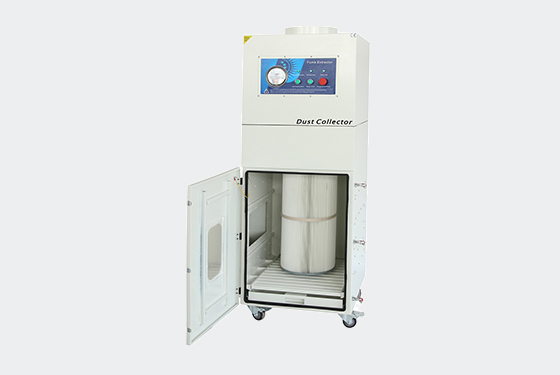

The installation forms of Wood dust collector and Single-machine pulse cartridge dust collector can be designed according to different structures, usually divided into: top-mounted, bottom-mounted, and side-mounted. The new pulse pleated long filter cartridges are mostly installed vertically, which is conducive to the design of the spraying method. It is suitable for places with high dust concentration and has a better cleaning effect. Traditional self-cleaning filter cartridge dust collectors are more side-mounted, and a small part of them are installed vertically through flange interfaces. They are usually traditional large diameter (such as 352, 324) filter cartridges, which have the advantage of large filter area , The disadvantage is that the pleats are too deep and the dust removal effect is poor, and it is easy to cause secondary dust removal. It is often used in places with low dust concentration.

Filter material selection

The selection of filter material needs to consider the following factors: temperature, dust concentration, moisture, acidity and alkalinity, conductivity, etc. Cangzhou Zhenda recommends using polyester filter material or high-temperature resistant PPS, Nomex filter material first, and can be treated with anti-static, oil-proof, waterproof, flame-retardant, and PTFE coating. Use wood pulp fiber filter in places with low dust concentration. cylinder. Generally speaking, the wind speed of ordinary polyester filter cartridge is above 1m/min, while the wind speed of ordinary wood pulp fiber filter cartridge is below 0.7m/min.
