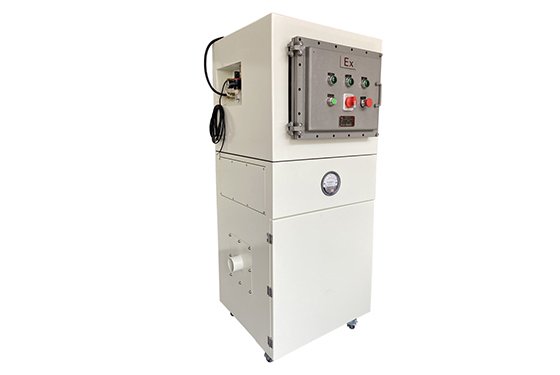

PURE-AIR technology Industrial dust collector is widely used in laser cutting, plasma cutting and metal shot blasting industries. The industrialized design of the appearance is combined with the overall structure, the equipment occupies a small area, and the transportation and installation are convenient.

The industrial dust collector adopts self-developed PLC control program setting, the operation panel has clear instructions, complete functions, and each step is easy to understand and easy to operate. The main electrical appliances are all imported brands to ensure the smooth operation of the equipment. At the same time, according to different conditions of use, our professional engineers can set up operating procedures in a targeted manner. This equipment adopts advanced submerged flow layout and inclined-mounted filter cartridge structure, which makes the synchronous cleaning effect obvious.

PURE-AIR Industrial Dust Collector uses imported nano flame-retardant filter material, which has passed tens of thousands of experiments with air filtration experience. The surface of the filter material is double-layer high-grade nanofibers, and the surface of the filter tank can capture very small Dust and soot particles. The membrane pore size is small, the distribution is uniform, and the filtration efficiency is high. It has good permeability, low running resistance, and more thorough and clean dust removal of the filter cartridge. The cleaning pressure is low, and it retains extremely small dust particles, and has low energy consumption. It can save energy by more than 45% compared with ordinary filter media. The filtration accuracy can reach 0.1-0.5 microns, the filtration efficiency is extremely high, and the filtration efficiency is high: the filter material can be selected according to the nature of the collected dust.

Use high-precision pulse solenoid valve to achieve equipment cleaning. When the equipment pressure difference reaches the set range value, the computer motherboard program controls the pulse valve to start, release compressed air to spray atmospheric pressure into the inner cavity of the filter cartridge, so that the dust adsorbed on the surface of the filter cartridge will be knocked down into the ash collection box. The service life of the pulsating solenoid valve can exceed one million times.

The industrial Dust collector is equipped with universal wheels and has a transparent observation window, which can monitor the amount of dust accumulation in real time, which is convenient for employees to clean the dust in time. The filter installation drawer type dust collection box can make the removal and replacement of the filter cartridge more convenient, reduce the maintenance work to a minimum, and save a lot of manpower and maintenance costs.

If you want buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
