Introduction:

Application:

It is suitable for the purification of smoke, water vapor, odor and harmful gases produced by dye sublimation printing industry during the high temperature evaporation of dye ink during the printing process.

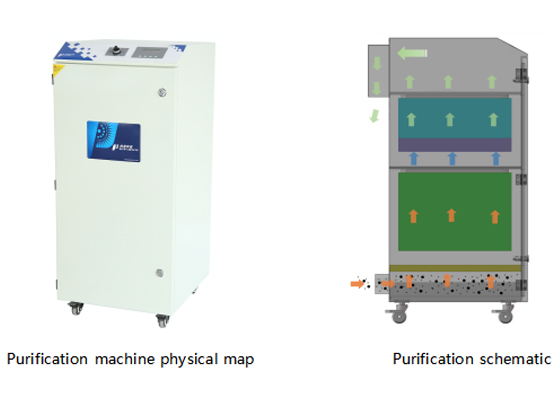

Working principle:

The high-performance brushless fan in the purifier generates negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by multi-stage filter elements such as primary efficiency, intermediate efficiency, high efficiency, and gas filter for indoor discharge.

Features and benefits:

(1). Special structure design, small body size, low running noise and movable;

(2). Low power consumption, maintenance-free brushless fan, stable operation and long service life;

(3). It can realize precise air volume adjustment, and the LCD display can check the air volume and negative pressure of the machine in real time;

(4). The control system comes with a filter plug alarm function, prompting customers to replace the filter in time;

(5). Equipped with infrared or wireless remote control to facilitate remote operation of the machine;

(6). Four-stage filtering large-capacity filter to ensure the complete purification of smoke, odor and harmful gases; the specially configured open-cell foam sponge can absorb water vapor and smoke generated during the heating of the sublimation ink;

(7). Soot filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);

(8). High odor and harmful gas purification effect;

(9). The filter element can be replaced independently, which reduces the use cost of the filter element, and it is more convenient to maintain and replace the filter element;

(10). Stainless steel case can be customized according to customer requirements.

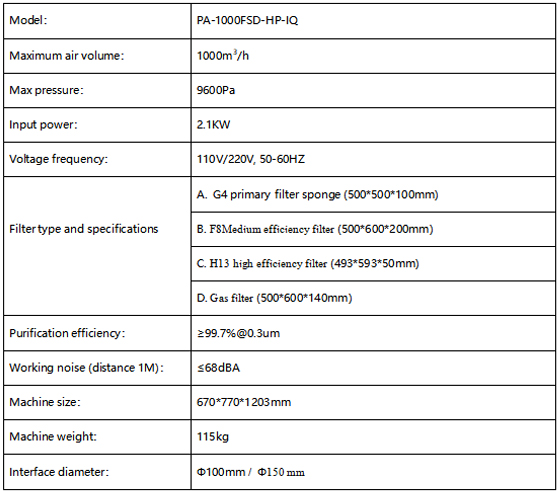

Parameters:

If you want to buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
