Introduction:

Application:

It is suitable for the purification of fumes during laser marking, engraving, scribing, coding, manual soldering, dipping tin, manual repair of circuit boards, etc.

 Working principle:

The brushless fan in the purifier generates air volume and negative pressure, sucks smoke and exhaust gas into the filter, and purifies it by multi-stage filter elements such as primary efficiency, intermediate efficiency, high efficiency, and gas filter for indoor discharge.

Features and benefits:

(1). The machine is small in size, low in operating noise and easy to move;

(2). Low power consumption and high efficiency brushless fan, stable operation and long service life;

(3). Four-stage filter to ensure complete purification of soot and harmful substances;

(4). The filter element can be replaced separately, which reduces the use cost of the filter element, and it is more convenient to maintain and replace the filter element;

(5). The filtration efficiency is up to 99.7%@0.3 microns (note: our self-test);

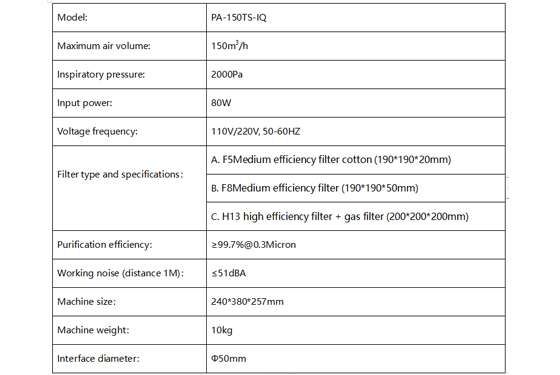

 3. Parameters:

If you want buy fume extractor, please contact with Dongguan Pure-Air Tech Co.,ltd, E-mail: sales@pure-airtech.com.
