The so-called electromagnetic pulse valve refers to the airflow passing through this valve when an instantaneous electrical signal is given, which has short-term fluctuations like pulse phenomenon, so it is called pulse valve. The electromagnetic pulse valve defined by the industry standard is a diaphragm valve that is a combination of an electromagnetic pilot valve and a pulse valve and is controlled by an electric signal.

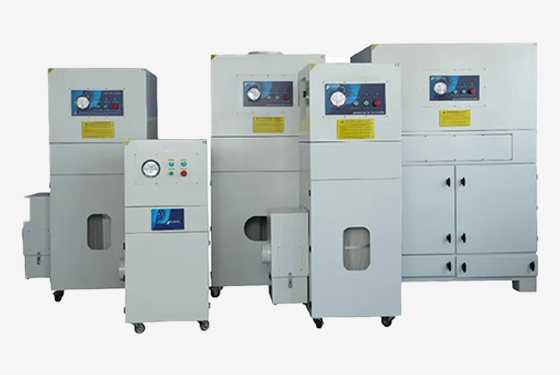

pulse cartridge dust collector

The pulse valve is the actuator and key part of the pulse jet ash cleaning device. It is mainly of right-angle type, submerged type and straight-through type. Each type has several specifications. The connection port is 20-102mm (0.75-4in), and more large size. The working pressure of domestic pulse valve is 0.4-0.6MPa for right-angle valve and straight-through valve, and 0.2-0.6MPa for submerged valve; no matter which kind of valve of imported product, the working pressure range is 0.06-0.86MPa, and there is no pressure and The difference between high and low application power.

Pulse cartridge dust collector and Filter cartridge dust removal equipment The electromagnetic pulse valve blowing air volume is restricted by many factors. How many filter bags (filter area) can be sprayed by an electromagnetic pulse valve? A row of filter bags already knows the diameter, length and length of the filter bags. How many inches of pulse valves are needed for the number of filter bags? This kind of problem is often encountered, especially for those who have just been engaged in the design of bag filters. This is the first answer he needs. Indeed, the electromagnetic pulse valve is the key element of the pulse jet bag filter dust removal system. Only when a dust collector has a reliable and effective dust removal function can it maintain its set resistance and ensure the normal operation of the equipment. But so far there is no method or way to quickly determine the answers to the above questions, and there is no formula for calculation.

Filter cartridge dust removal equipment

Pulse cartridge dust collector and Filter cartridge dust removal equipment The blowing air volume of the electromagnetic pulse valve is the key to determining how many filter bags (filtering area) can be cleaned, but only the blowing volume of the electromagnetic pulse valve is used to determine its cleaning ability It's not scientific either. Because some pulse valves cannot be closed in time and the blown air volume increases, apart from increasing the consumption of compressed gas and wasting energy, it has no effect on cleaning the filter bag. For a pulse valve with good performance and quality, its blowing air volume is also restricted by many factors in the cleaning system: from the input end of the pulse valve, the volume and pressure of the gas distribution box, and the supply of the gas distribution box The inner diameter of the air pipe and the air supply capacity of the air source directly affect the blowing performance and blowing air volume of the same pulse valve: on the load end of the electromagnetic pulse valve, that is, the filter bag it blows, the temperature of the dusty gas that it filters, Humidity, dust concentration, specific gravity and viscosity, filtration speed, equipment resistance will all put forward different requirements for blowing performance and air volume. The number and structure of nozzles (nozzles), filter bag material, diameter, length and quantity, and dust removal. Various factors such as form (online, offline), dust removal control (timing, constant pressure difference), etc., affect and restrict the injection performance and dust removal effect of the pulse valve to varying degrees.
