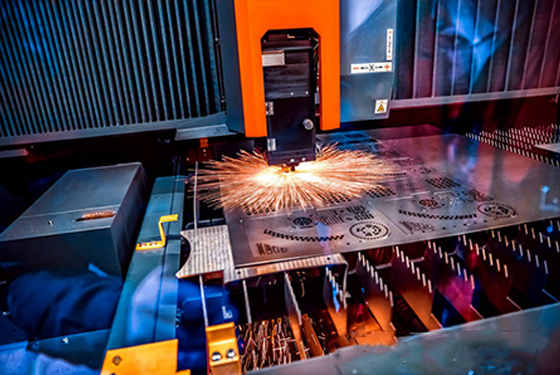

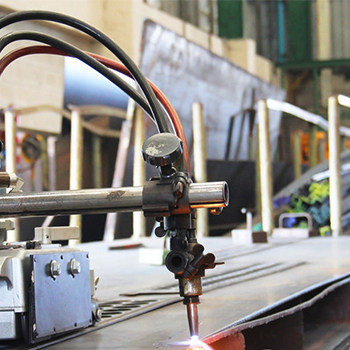

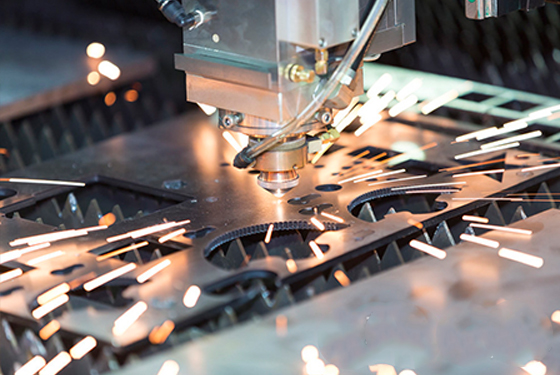

When the existing plasma cutting machine cuts steel plates, due to its inherent working mode, the heat and smoke generated during the cutting process are relatively large. The generated smoke and dust will pollute the environment, and the toxic gas contained during the period will cause harm to the health of the operators. . Therefore, in the plasma cutting process, the cutting platform uses air extraction and water adsorption to treat the smoke and dust generated during the cutting process, and a cutting fume purification device is added to the cutting table, which is then directly discharged outdoors or indoors for recycling.

PURE-AIR cutting Smoke and dust purifier is divided into side suction type and down suction type according to the different suction direction. The treatment method does not cause secondary pollution during operation, and is suitable for filtering various dust generated in the metal cutting process. However, the treatment method requires a large one-time investment and a long construction period. After the filter cartridge dust collector removes the dust, the filter element surface of the Cartridge dust collector stores the filtered dust, and the filter cartridge of the filter cartridge dust collector needs to be cleaned. In order to facilitate the cleaning of the filter cartridge of the dust collector, we will design it as a vertical insertion type. When dust accumulates to a certain degree, it needs to be cleaned up, and the dust installed vertically should be better cleaned up. When the filter cartridge dust collector needs to clean up the dust, it directly sprays the filter element with the jet of the pulse valve to make the dust fall off.

The cutting fume purification device is generally composed of an intake pipe, an exhaust pipe, a box, an ash hopper, and a dust removal device. Moreover, in the case of the cartridge type dust collector, it is usually due to the sudden expansion of the distance and the distribution of some airflow, and then under the push of the machine, they return to the inside together. In this way, some dust can be filtered, and the dust can enter the exhaust pipe whether it is weaker or less dense. At the same time, this kind of dust can also be discharged from the exhaust pipe.

The function of the filter cartridge dust collector is very large, and it can be used for dust removal of various factory equipment. The model size of the filter cartridge dust collector can be selected at will, or the original combination can be expanded and storage equipment can be added. In this way, there is no need to make too many changes to the original equipment.
