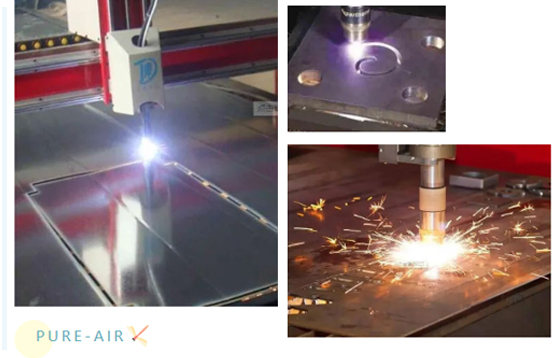

When the existing plasma cutting machine is cutting steel plates, due to its inherent working mode, the heat and smoke generated during the cutting process are relatively large, the generated smoke and dust will pollute the environment, and the toxic gas contained during the cutting process will cause harm to the health of operators. Therefore, in the plasma cutting process, the cutting platform adopts the form of air extraction and water adsorption to deal with the fume and dust generated during the cutting process, and a set of cutting fume purification device is added to the cutting table, and then directly discharged to the outdoor or indoor for recirculation.

PURE-AIR cutting Soot purification device is divided into side suction type and down suction type according to the different cleaning directions. This treatment method will not cause secondary pollution during operation, and is suitable for filtering various dusts generated in the process of metal cutting, but this treatment method has a large one-time investment and a long construction period. After the filter cartridge dust collector is dedusted, the filtered dust is stored on the surface of the filter cartridge dust collector, and the filter cartridge of the filter cartridge dust collector needs to be cleaned. In order to facilitate the cleaning of the filter cartridge of the dust collector, we will design it as a vertical insertion type. When the dust accumulates to a certain level, it needs to be cleaned, and the dust installed vertically should be cleaned better. When the filter cartridge dust collector needs to clean the dust, directly use the jet of the pulse valve to spray the filter element to make the dust fall off.

The cutting fume purification device is generally composed of an intake pipe, an exhaust pipe, a box, an ash hopper, and a ash removal device. Moreover, in the case of a cartridge type dust collector, it is usually due to the sudden expansion of the distance, etc., some airflow distribution, and then under the push of the machine, it returns to the inside together. In this way, some dust can be filtered, and whether the dust is low in strength or low in density, it can enter the exhaust pipe. At the same time, this dust can also be discharged from the exhaust pipe. Ash is also very convenient.

Cartridge Dust Collector is very functional and can be used for dust removal of various factory equipment. The model size of the filter cartridge dust collector can be selected, and the original combination can also be expanded to increase the storage equipment. In this way, there is no need to make too many changes to the original equipment.

If you want to Buy Fume Extractor, please Contact with Dongguan Pure-Air Tech Co., Ltd, E-mail: Sales@pure-airtech.com.
