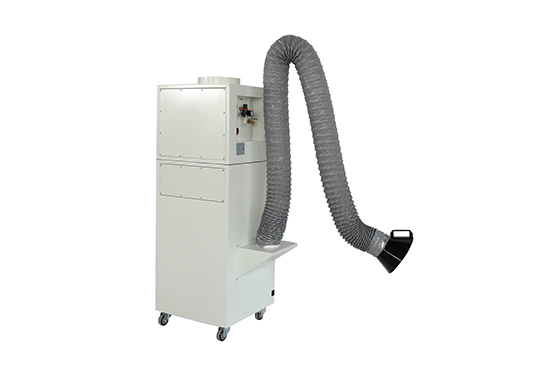

1. Welding fume purifier is composed of centrifugal fan, high-precision filter element, purifier box, activated carbon plate, electric control device and flexible suction arm with dust hood.

2. The welding fume purifier adopts a filter cartridge filter, which has a large filtering area and a low filtering flow rate per unit area, so the filtering efficiency is extremely high.

3. The welding fume purifier adopts optimized design and adopts the technology of inlet air flow equalization and diversion, which solves the uneven air flow in each room that is unavoidable in the general bag filter.

4. The airflow organization design of the fume welding machine is reasonable, the resistance loss is small, the model is small, the movement is flexible, the operation is simple, and the maintenance is convenient.

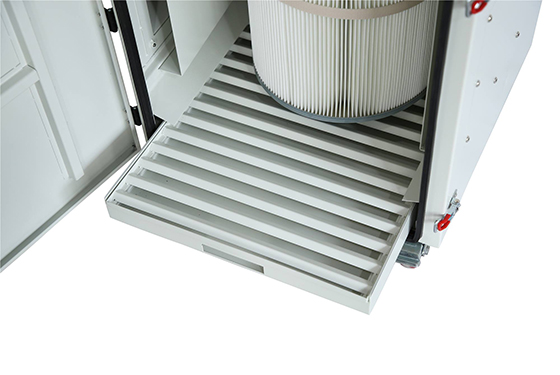

5. The filter cartridge adopts imported filter material, which has high filtration efficiency, and the life of the filter cartridge is much longer than that of ordinary filter materials.

6. The uniform air deflector is used before filtering, which greatly prolongs the life of the filter cartridge.

7. The welding fume purification device is equipped with a suction arm that can rotate 360 degrees and can move up and down, up and down, and left and right.

8. There are four wheels on the bottom of the welding fume purifier, which can move lightly and is suitable for places where the work site is frequently changed and dust is purified.

Attention should be paid to the welding fume purifier.

1. Move the welding fume filter to the center where welding is required, and place the suction arm cover 30cm above the welding spot;

2. Check whether the joints are firm;

Check whether the connections between the welded Smoke purifier and the pipeline are tight, and whether there is any air leakage;

Connect AC380V power supply, ground, pay attention to the rotation of the motor before running, press the start button (ON/OFF) on the control panel to start the welding fume purifier, let the dusty gas pass through the welding fume purifier, and make the dusty gas purify through the welding fume , Make the smoke purification device work normally.
