The working workshop environment of many domestic and foreign production
and processing enterprises is getting worse and worse, leading to the premature
aging of the mechanical equipment in many enterprise workshops. The main reason
is that the air is filled with a large amount of smoke and dust, which causes
long-term wear and tear on the company’s mechanical equipment. As a result, the
maintenance cost of the company has risen sharply. Pure-Air specializes in
manufacturing and selling laser air purifier& laser cleaning filter systems
and many other industrial workshop smoke and dust purification equipment.

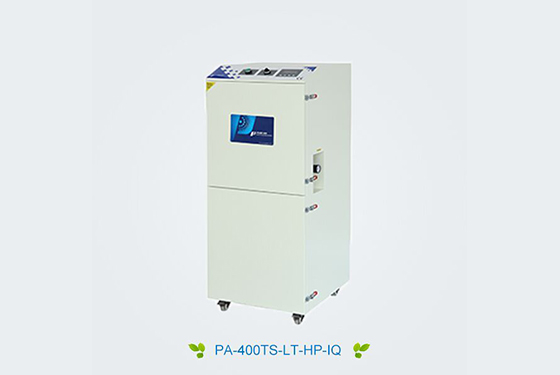

Pure-Air industry fumes extractor or pulse filter cartridge dust collector
is equipped with air inlet, filter cartridge, air outlet, air bag, pulse
controller, injection valve, injection tube, etc. The filter cartridge is folded
and rolled by polyester fiber The lower end is closed, and the middle of the
upper end faces the lower mouth of the blowing pipe. After the dust-containing
gas enters the dust collector from the air inlet, the airflow speed slows down,
and the coarse particles leave the airflow and settle into the dust collection
chamber. When the fine dust passes through the filter cartridge with the
airflow, it is blocked on the outer surface of the filter cartridge, and the
clean gas is discharged from the air outlet; When the dust layer on the surface
of the filter cartridge is thick, the pulse controller announces the command to
open the pulse valve, and the compressed air in the air bag is ejected at a high
speed through the blowing pipe, and together induces several times the amount of
surrounding air to enter the filter cartridge, and from the inside to the
outside. It shoots out quickly, blows down the dust on the outer surface of the
filter cartridge into the dust collector, and then discharges it from the ash
hopper. The dust removal of the dust collector adopts the pulse injection
method, which not only achieves complete dust removal, but also does not damage
the filter cartridge, so that the service life of the filter cartridge can be
ensured. The cleaning process is automatically controlled by the pulse
controller, which can be controlled by pressure difference or at all times.
Therefore, no matter how to increase salary and increase protection for
employees, they cannot effectively purify equipment harmful gases and fumes. It
is necessary to provide equipment such as industrial air fume extractor and
industrial clean equipment in time to protect the health of employees.
If you want to buy a fume extractor, please feel free contact with ‘Dongguan Pure-Air Tech Co.,Ltd.’.
